Why Choose Our Flame Retardant Rocker Switches?
Arc & Heat Resistant: Engineered to withstand electrical arcs without melting or igniting.
UL94 V-0 Certified: Self-extinguishing housing materials for maximum safety.
One-Stop Manufacturing: In-house mold design, injection molding, metal stamping, and assembly.
+/-0.05mm Precision: Tight tolerance for seamless integration with your switch contacts.
Fast Prototyping: Rapid tooling and sampling to shorten your development cycle.
Global Shipping: Flexible logistics with EXW, FOB, CIF, and DDP options.
Technical Specifications

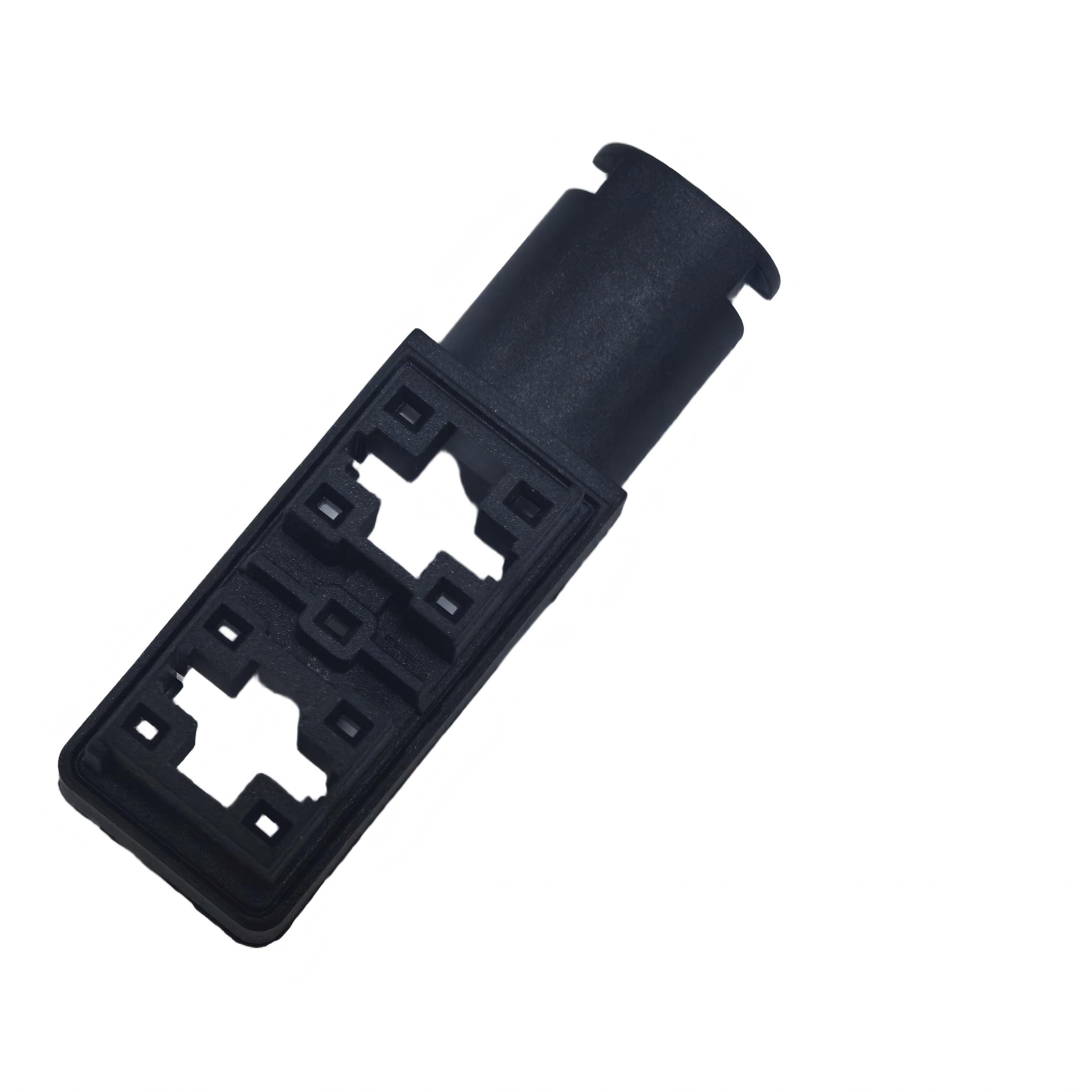

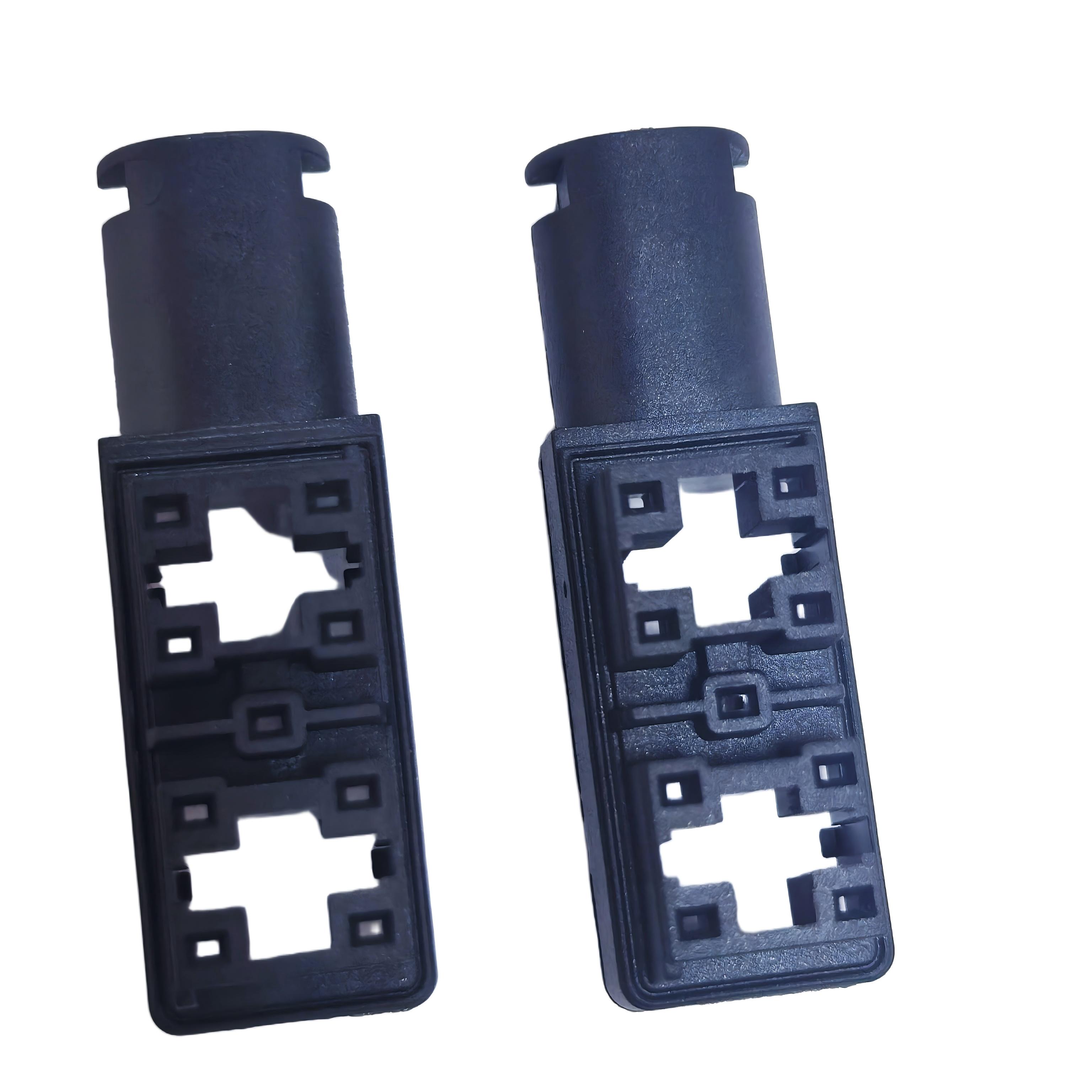

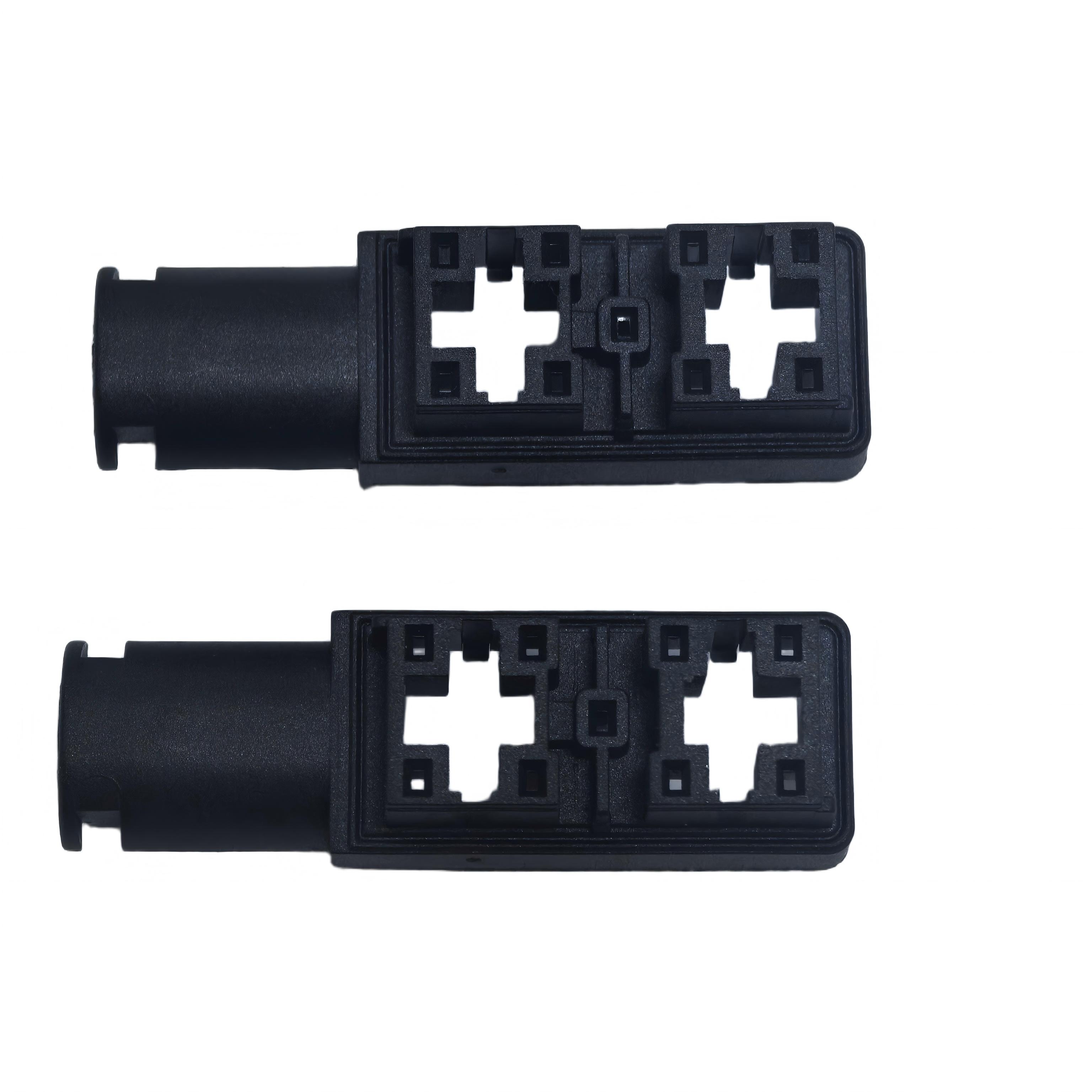

Product Name: Custom Rocker Switch / Internal Skeleton Base
Material: Flame Retardant PBT / PA66 (UL94 V-0)
Rated Voltage/Current: 250VAC / 10A (Customizable)
Contact Resistance: ≤50mΩ
Insulation Resistance: ≥100MΩ
Operating Temperature: -40℃ to +125℃
Flammability Rating: UL94 V-0, Glow Wire Tested (IEC 60695)
Tolerance: +/-0.05mm
Customization: Color, Size, Terminal Type, Wire Harness
Safety-Critical Materials & Compliance

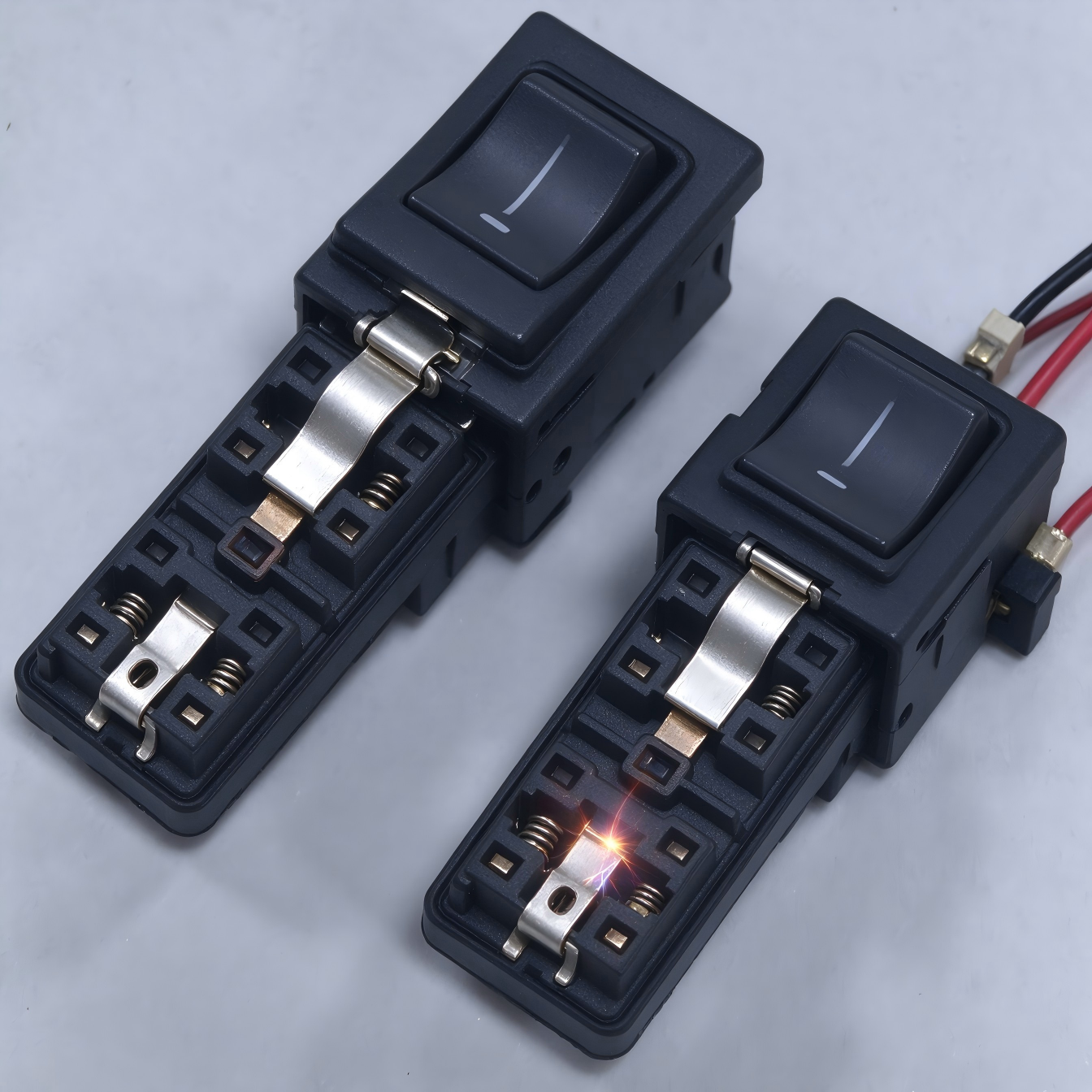

When electrical arcs strike (as shown in the image), localized temperatures can spike instantly. Ordinary plastics can melt, carbonize, and ignite.
Our rocker switches are injection molded from premium flame-retardant engineering plastics (PBT/PA66).
UL94 V-0 Certified: Self-extinguishes within 10 seconds without dripping.
Glow Wire Compliant: Designed for unattended appliances and high-current applications.
High CTI Values: Prevents electrical breakdown and tracking.
Eco-Friendly: Halogen-free, RoHS, and REACH compliant.
Complete Customization to Match Your Design
We provide full OEM/ODM services to turn your drawings into high-quality finished products.
Plastic Parts: Custom colors (black, white, grey, transparent), flame retardant grades (V-0, V-2).
Metal Parts: Custom terminal types, contact bridges (brass, phosphor bronze), and plating (silver, gold).
Wire Harnesses: Custom wire lengths, colors (red/black), and connector types.
Complex Structures: Capable of molding intricate skeletons, snap-fits, and cross-slots.

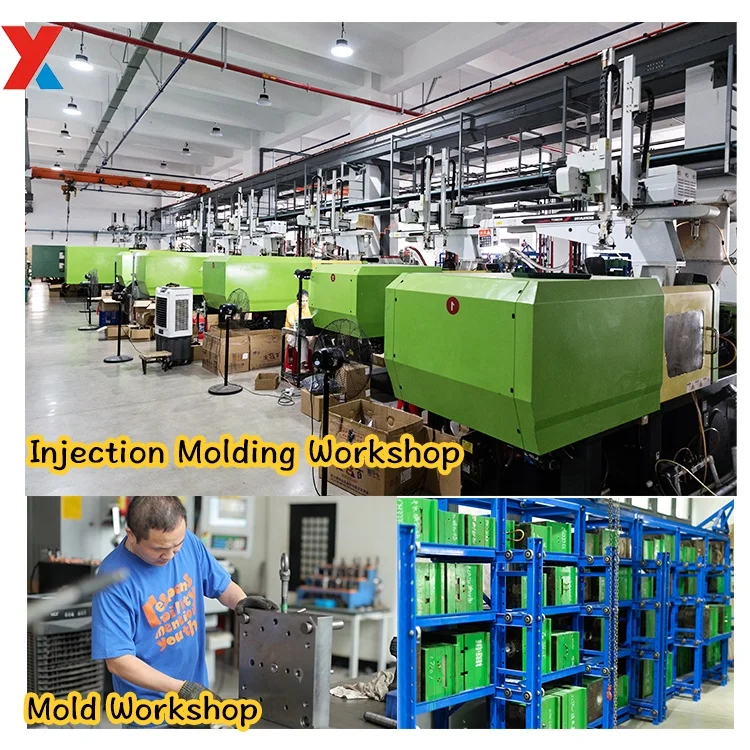

Advanced Manufacturing Capabilities
Our vertically integrated factory ensures strict quality control from raw material to final assembly.
Mold Design & Making: In-house engineering and DFM analysis.
Precision Injection Molding: Advanced machines for tight tolerance molding.
Metal Stamping: High-speed stamping for contact bridges and terminals.
Assembly: Automated and semi-automated assembly lines for metal, plastic, and wire integration.
100% Inspection: Full quality check before packaging.
Strict Quality Control System
We understand that a failed switch can be catastrophic. Our quality control protocols are designed to simulate real-world electrical stresses.
Arc Simulation Testing: We test our housing under electrical arcs to ensure no ignition occurs.
Dimensional Inspection: 2D image measuring instruments for +/-0.05mm verification.
Environmental Testing: Temperature and humidity chambers for durability.
Life Cycle Testing: Simulating millions of toggle operations.
100% Pre-Shipment Inspection: Every batch is fully checked before leaving our factory.
Widely Used in Smart Home & Consumer Electronics
Our flame-retardant rocker switches and internal skeleton bases are critical components in:
Smart Home: Intelligent wall switches, smart power strips, smart curtain motors.
Consumer Electronics: Gaming controllers, mechanical keyboards, earphone charging cases, power tools.
Home Appliances: Ovens, heaters, high-power devices.
Frequently Asked Questions
Q1: What is your MOQ?
A: We support low MOQ for custom orders. Please contact us with your specific requirements.
Q2: Can you provide free samples?
A: Yes, we offer free samples for standard designs, but the buyer usually pays for the shipping cost.
Q3: How long is the lead time?
A: Prototyping takes 7-10 days. Mass production typically takes 15-25 days depending on quantity.
Q4: Can you design the mold based on my drawing?
A: Yes, we have an in-house engineering team. Send us your STEP/IGES files for a free DFM analysis.
Q5: Do you offer UL94 V-0 material certificates?
A: Yes, we can provide UL Yellow Cards and RoHS/REACH reports for our flame-retardant materials.
Safe Packaging & Global Delivery
Packaging: Anti-static bags + bubble wrap + export-standard cartons.
Shipping Methods: DHL, FedEx, UPS, TNT, Air Freight, Sea Freight.
Trade Terms: EXW, FOB, CIF, DDP.
Lead Time: 15-25 days for mass production after sample approval.
Your Trusted Partner for Precision Injection Molding
21+ Years Experience: A proven track record in precision plastic manufacturing.
Advanced Facility: 20 injection molding machines and a dedicated assembly workshop.
Global Clientele: Trusted by leading smart home and consumer electronics brands worldwide.
Certified Quality: ISO 9001 certified factory with strict quality management systems
Ready to Start Your Custom Switch Project?
Send us your 3D drawings (STEP/IGES) or 2D samples. Our engineering team will provide a free DFM analysis and a detailed quote within 24 hours.
Contact: Alice Chen | [email protected]| M: +8615880203718
Our professional sales team is waiting for your consultation.
