Insert Molding Molds

Insert Molding Molds

Home /  Products /  Injection Molds /  Insert Molding Molds

Insert Molding Molds

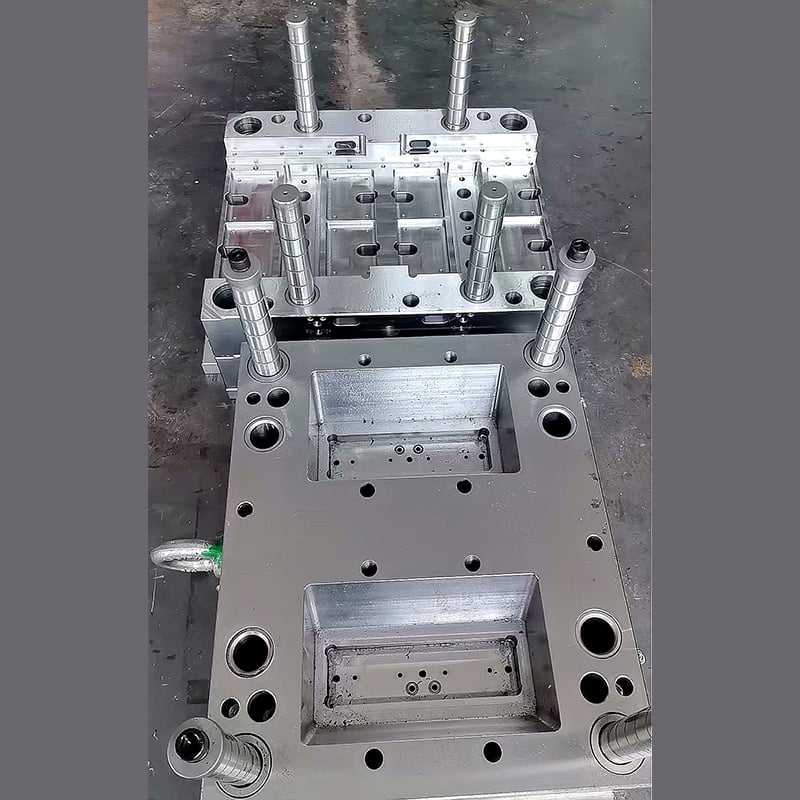

Custom Multi-Cavity Plastic Injection Mould for Electronic Housing Compatible ABS PC Nylon PA
Custom Multi-Cavity Plastic Injection Mould for Electronic Housing Compatible ABS PC Nylon PA
Custom Multi-Cavity Plastic Injection Mould for Electronic Housing Compatible ABS PC Nylon PA
Custom Multi-Cavity Plastic Injection Mould for Electronic Housing Compatible ABS PC Nylon PA

Custom Multi-Cavity Plastic Injection Mould for Electronic Housing Compatible ABS PC Nylon PA

Get a Quote
Introduction
Item Custom Multi-Cavity Plastic Injection Mould
Place of Origin Fujian, China
Brand Name OEM & ODM Customized
Model Number Customized Based on Customer 2D/3D Drawings or Samples
Certification ISO9001, SGS Material Test Report
Item Details
Minimum Order Quantity 1 Set
Price Negotiable, Depends on Cavity Quantity, Mold Steel, Product Size & Complexity
Packaging Details Export Fumigated Wooden Case with Anti-Rust Oil & Protective Film
Delivery Time 20–35 Working Days After Drawing Confirmation & 50% Deposit Received
Payment Terms T/T: 50% Deposit Before Production, 50% Balance Before Shipment
Supply Ability 50 Mold Sets Per Month
Quick Detail
  • Aliases: Multi‑cavity electronic enclosure injection mold, custom plastic housing tooling, precision multi‑cavity mould for electronic parts, custom injection tool for consumer electronics casing, multi‑cavity plastic shell mould supporting multiple engineering plastics
  • Application: This fully custom multi‑cavity plastic injection mould is specially developed for mass‑production of various electronic housing and enclosure components. It widely serves consumer electronics, household electronic devices, industrial control modules, power supply units and communication equipment. It supports multiple engineering plastic materials including ABS, PC, Nylon PA and modified blends. We deliver end‑to‑end custom service: DFM feasibility review, tailor‑made mold design, CNC & EDM precision machining, mold trial‑out, sample optimization and final mold handover, adapting to your unique housing appearance, internal assembly structure and high‑volume production goals.
  • Key Specs: Fully customized according to customer 2D/3D drawings or physical samples; flexible multi‑cavity configuration; compatible with ABS, PC, Nylon PA and other engineering plastics; customizable gate type, cooling channel and ejection mechanism; optional hot runner system; diverse surface texture options; support insert‑molding integration; complete OEM & ODM custom development.
Description
Our custom multi‑cavity plastic injection mould for electronic housing is a high‑efficiency precision tooling solution built for high‑volume electronic casing manufacturing. Every mold is not a standard off‑the‑shelf product, but fully built around your electronic housing project requirements. Whether you own complete 3D design files, preliminary concept sketches or only existing physical samples, our professional mold engineering team can translate your product ideas into stable, production‑ready multi‑cavity injection mould.
Electronic housing parts put forward strict requirements on dimensional consistency, assembly tolerance, surface appearance and mechanical performance. Multi‑cavity mold design adds higher challenges for cavity balance, uniform filling and consistent cooling effect. At the early project phase, our engineers carry out comprehensive DFM analysis for your custom electronic housing. We thoroughly check wall‑thickness distribution, draft angles, undercut structures, rib layout, gate position, cooling circuit layout and ejection scheme. Practical optimization suggestions will be provided to prevent common molding defects such as warpage, sink marks, short shots, flow lines and uneven shrinkage, ensuring every cavity can produce qualified housing parts with consistent quality in long‑run mass production.
Mold steel grade can be fully customized according to your expected mold service life and production output. Customers can select suitable steel for cavity and core to match different production cycles. Cavity quantity is highly flexible for custom configuration, ranging from 2‑cavity, 4‑cavity up to 8‑cavity or more, balancing your production efficiency and mold investment budget. You are allowed to choose conventional cold runner or high‑performance hot runner system as required. Hot runner option helps reduce material waste, shorten molding cycle and improve surface quality of electronic housing, which is ideal for large‑scale continuous manufacturing.
The internal cooling channels are tailor‑made following the contour of electronic housing, achieving even temperature control across all cavities. Balanced cooling greatly stabilizes part dimension, reduces deformation risk and improves overall production efficiency. Multiple gate solutions are available for custom selection, including side gate, submarine gate, point gate and hot‑tip gate, to satisfy different appearance demands and assembly constraints. If your electronic housing needs embedded metal terminals, copper inserts or screw bushes, we can integrate insert‑molding function into this multi‑cavity mold structure.
Rich custom surface finishing choices are supported: high‑gloss mirror polishing, various grain textures, matte etching, anti‑scratch texture and custom patterned surface. Parting line position, ejection pin layout and mold base standard can all be adjusted per your request. After CNC rough machining, fine milling and high‑precision EDM spark processing, every mold component undergoes strict dimension inspection and fitting test before mold trial. Multiple mold‑trial cycles will be performed, real plastic housing samples will be delivered for your evaluation. We will adjust mold dimension, structure or surface finish based on your sample feedback until the custom electronic housing fully meets your specification.
After sample approval, we complete final mold fitting, anti‑rust protection and safe wooden‑case packaging for shipment. Besides new multi‑cavity mold development, we also provide follow‑up custom modification service. You can request to adjust housing dimensions, modify shell appearance, add or remove internal structures, rework texture or adjust cavity layout for product iteration, bringing great flexibility for your product upgrade and market expansion.
Applications

‑ Custom multi‑cavity injection mold for consumer electronic plastic housing

‑ Tooling for household appliance control box and power supply enclosure

Precision mould for industrial electronic module casing and instrument shell

‑ Multi‑cavity tool for communication equipment plastic housing parts

‑ Insert‑molding integrated mould for electronic housing with metal embedded inserts

‑ OEM custom multi‑cavity tooling for new‑developed electronic enclosure mass‑production

Specifications
Specification Item Custom Multi-Cavity Plastic Injection Mould
Cavity Quantity 1 Cavity, 2 Cavity, 4 Cavity, 8 Cavity Multi-Cavity Design
Standard Mold Base S50C Steel, LKM / HASCO / DME International Standard
Core & Cavity Steel P20, 718H, S136, STAVAX, H13, NAK80
Rated Mold Lifespan 50,000 Shots / 150,000 Shots / 300,000 Shots
Compatible Plastic Raw Material ABS, PC, PA6 / PA66 Nylon, PP, PMMA, TPU, Glass Fiber Reinforced Plastics
Main Processing Equipment CNC Milling, Wire Cut EDM, Sinker EDM, Precision Surface Grinding
Mold Surface Finish Matte Texture, Fine Texture, Mirror Polishing, Satin Finish
Standard Mold Components Standard Guide Pin, Ejector Pin, Cooling Nozzle, Sprue Bushing
Mold Weight Customized Based on Product Outline Size & Cavity Count
Competitive Advantage
Customer‑oriented full customization is our core strength for multi‑cavity electronic housing injection mold projects. We never force your product to adapt to fixed existing mold structures. Every tooling project starts from your unique electronic housing requirements. Our in‑house engineering team completes full workflow including custom DFM assessment, tailor‑made multi‑cavity mold design, precision CNC & EDM machining, repeated mold trial‑out, sample tuning and post‑delivery mold modification service.
All key parameters can be adjusted to fit your project: cavity number selection, runner scheme, gate arrangement, steel grade choice, surface texture, insert‑molding function integration and expected mold service life. Multi‑stage strict quality inspection covers drawing review, raw steel incoming check, component dimension testing, pre‑shipment mold trial and sample verification, effectively lowering your investment risk for custom multi‑cavity tooling.
No matter you are launching brand‑new electronic housing products, upgrading existing enclosure design, pursuing higher production efficiency by expanding cavity quantity, or implementing insert‑molding solution, we can deliver one‑stop custom injection mold solution. Flexible mold modification service supports your later‑stage product iteration. We cooperate with electronics manufacturers and solution partners across the globe, offering transparent project communication, clear progress tracking and reliable after‑sales technical support for all your custom multi‑cavity mold projects.
